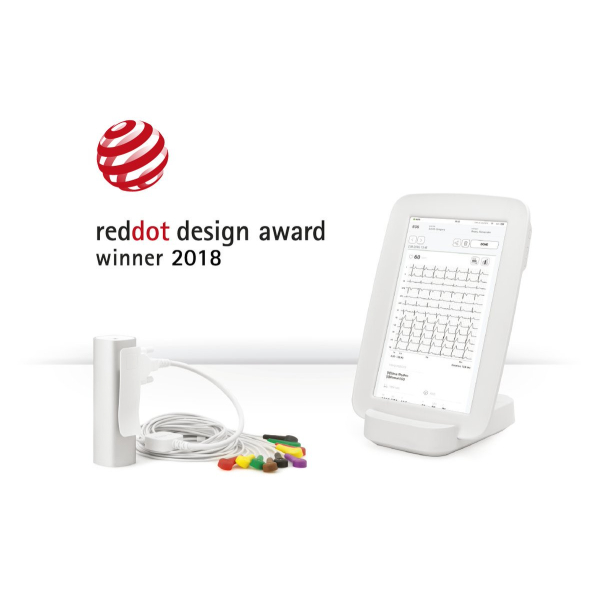

MESI mTABLET
ECG
12-lead ECG
makes you work smarter. Powerful diagnostic and collaboration solution in the
palm of your hand anytime, anywhere.
Advanced ECG
analysis and collaboration anytime,
anywhere
The wireless
and portable MESI mTABLET ECG, a powerful diagnostic device, makes it easy to
capture, analyze and share high-quality ECG data that can be accessed for
consultation with cardiologists or specialists from any
device.
ECG data with
advanced interpretation possibilities is available in real-time, for immediate
review, printout and consultation.
CONNECTED
WORKFLOW
MESI mTABLET
ECG is perfect for healthcare practices that want to reduce the administrative workload and have powerful
ECG analysis and their data always at hand. With mRECORDS application
consultation is simple, safer and easier than
ever.
-
FEWER STEPS, MORE
TIME
MESI mTABLET
ECG meets the need for a handy, portable, fast and advanced ECG solution that is
easy-to-use.
ECG data is
available in real time, on the mTABLET and on the physician's screen, without
waiting for the ECG printout. Having immediate access to the data, allows
physicians and specialists to request a repeat ECG even before the electrodes
are removed from the patient. This leaves more valuable time for patient
care.
MESI mTABLET
ECG is suitable for inpatient and outpatient
care.
-
ADVANCED ANALYTIC
TOOLS
The advanced
patient data system, University of Glasgow Interpretive Algorithm, set of
powerful analysis tools and mRECORDS application enable viewing of high-quality
ECG data and advanced ECG analysis from any web-enabled device, from any
location, anytime, anywhere.
-
ENHANCED
COLLABORATION
The MESI
mTABLET ECG helps to improve collaboration between healthcare professionals,
regardless of their location, device OS, browser or screen
size.
With the
mRECORDS application, medical diagnosis and consultation can be performed in a
simple and secure way, from any desktop computer, laptop or mobile device, in
just a few clicks.
POWERFUL
ANALYSIS TOOLS
The leading
University of Glasgow Interpretive Algorithm assures highly accurate and
advanced ECG interpretation. It helps the physician to take more confident and
informed decisions about diagnosis or further treatment. The high resolution ECG
signal is saved in digital format, making it possible to review and manage the
ECG data later on.
SIMPLIFIED AND
SAFE SHARING AND CONSULTATION
The physician
can now share and consult about the ECG recording in a safe and simple way, with
just a few clicks, while patient data stays
secure.
A physician or
specialist who is asked for consultation can access the ECG recording from any
device or platform and has exactly the same, advanced interpretation
possibilities as the physician who requested their opinion. This reduces the
likelihood of wrong, unnecessary referrals to specialists and future, costly
treatments.
INTUITIVE
INTERFACE
MESI mTABLET
system is extremely easy to use. The user-friendly intuitive interface guides
the user through the procedure. Almost no training is required. Results are
available for analysis immediately, on both the MESI mTABLET and the physician’s
screen, while at the same time, they are saved on MESI mTABLET and secure
server.
YOUR APPS, YOUR
TOOLS. YOUR PERSONALIZED SYSTEM
Upgrade with new tools, applications and algorithms
MESI mTABLET ECG
Technical
specifications
Tablet |
12-lead resting ECG
module |
mRECORDS |
Touchscreen Screen size 10.1 inch (25.6 cm) Display
resolution 1280x800 WXGA Camera 5 MP CPU 1.2 GHz Memory: 16 GB Battery: Li-Po 6800 mAh Battery capacity: up to
10 h Wi-Fi 802.11 a/b/g/n Fast Bluetooth connection Wi-Fi charging
unit Power adapter 100-240V AC 50 - 60Hz | 5V / 5000
mA |
Size: 13.5 cm x 4 cm x 4.8
cm Weight: 350 g Defibrillator protection Battery:
Li-Po 900mAh Battery capacity: more than 100
measurements Electrode placement
detection Automatic (10 s) and the manual mode
measurement (max 5 min) Basic ECG examination and
interpretation Power adapter 100-240V AC 50 - 60Hz | 5V / 1400
mA |
Ready for EHR
integration Chrome, Internet Explorer, Firefox and Safari
compatible Saves unlimited number of ECG
recordings Several printing format
possibilities |
Recording
specifications |
Safety standards: IEC/EN 60601-1; IEC/EN
60601-2-25; IEC/EN 60601-1-2 (EMC) |
Detection of loose
electrodes |
Sampling frequency: 32,000
samples/second/channel |
ECG analysis frequency: 1,000
samples/second |
CMRR: >
110dB |
Input impedance: 10
Mohm |
Digital resolution: 2.5µV /
19-bit |
Pacemaker detection: >/= ± 2 mV | > / = ±
0.1 ms |
Heart rate measurement: up to 300
BPM |
ECG display |
Display on screen: doctor and patient name,
heart rate, speed, amplification, time, duration, electrodes present, filter
setting, interpretation, measurement history, results commenting, time and date
of measurement |
University of Glasgow Interpretive Algorithm –
automatic interpretation (considers age and
race) |
Display of parallel graphs: 6:6+1, 6:6, 3:3
main, 3:3 aux, 6 main, 6 aux, 3:4, 12 |
Lowpass filters: 150 Hz, 250
Hz |
Highpass filters: 0.05 Hz, 0.2 Hz, 0.5
Hz |
Mains filter: 50/60
Hz |
Myogram (muscle tremor) filter: 25 Hz (40
dB/dec) or 35 Hz (20
dB/dec) |
